Name: SHR Hydraulik Self-Levelling System for Iveco Daily chassis from 2006 to current
Brand: Iveco
SKU: VBU-SHR-IV
Price: 8340.0 GBP
Availability: InStock

SHR Hydraulik Self-Levelling System for Iveco Daily chassis from 2006 to current

£8,340.00

Tax included.

*PRICE IS SUBJECT TO VEHICLE APPRAISAL*

Weighing module

Without weighing module

With weighing module

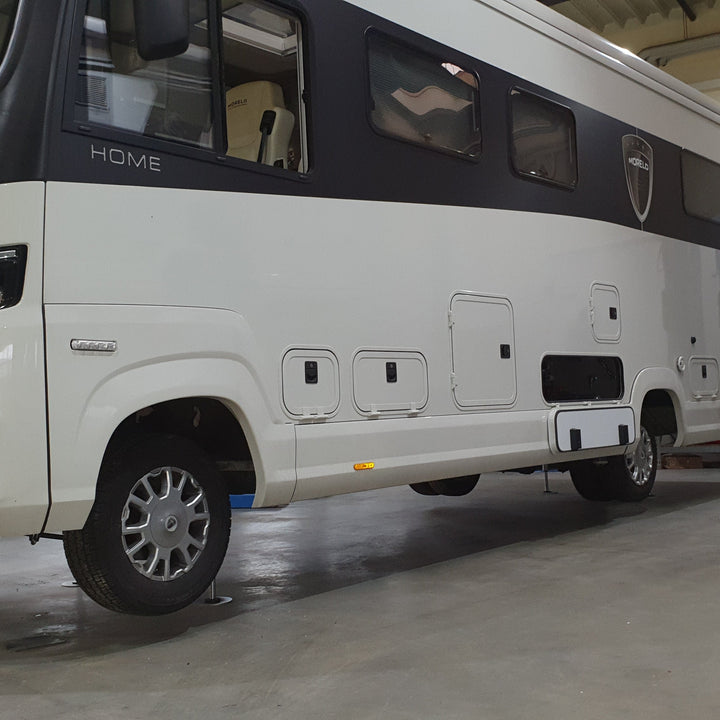

Easy, automatic levelling in under 60 seconds

Convenient control via remote or smart phone app

Stainless steel footplates with 18 degree articulation

NOTE: This system must be ordered through a VB-Dealer where it can be installed by trained & accredited technicians.

This system must be ordered through a VB-Dealer where it can be installed by trained & accredited technicians.

Check availability with your local VB-Dealer here.

SHR-Hydraulik Automatic hydraulic self-levelling system with multi-function smartphone App control.

The SHR-Hydraulik levelling system presents an innovative and premium quality compact levelling system for motorhomes and campervans.

Practical operation is via remote control or the SHR smartphone app for quick and convenient levelling in under 60 seconds, with an optional weighing function for complete peace of mind.

Benefits

Safe levelling of the vehicle in under 60 seconds
Convenient control via a radio remote control or smartphone app

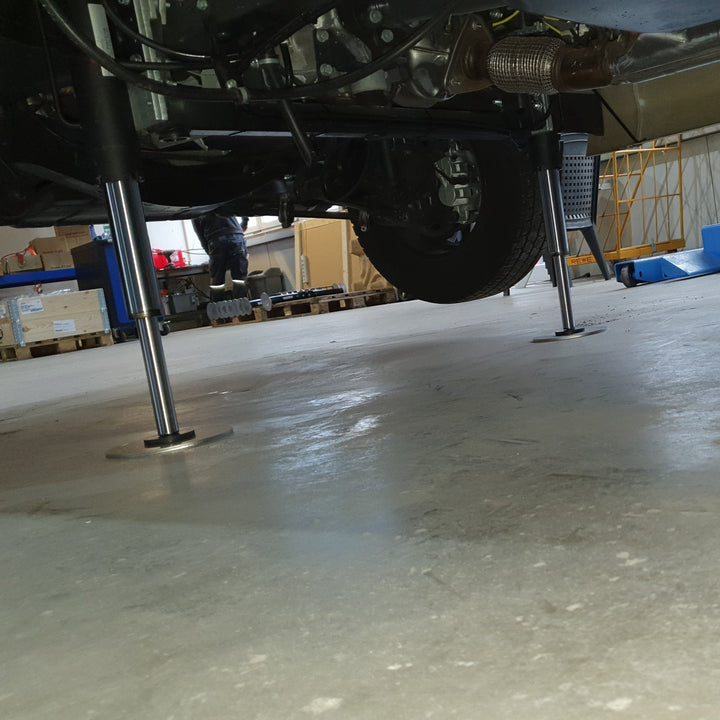

Stainless steel footplates which articulate up to 18 degrees on uneven ground
(Optional) Weighing function with less than 1.5% maximum deviation accuracy from the permissible total weight.
Mechanical and electronic shift lock and a double-release check valve on each cylinder: Permits the change of tires or application of snow chains*
Utilization of existing chassis fixing points for installation
No loss of valuable storage space in the vehicle
High quality installation by experienced, trained technicians
Standard 24 month warranty

Specifications

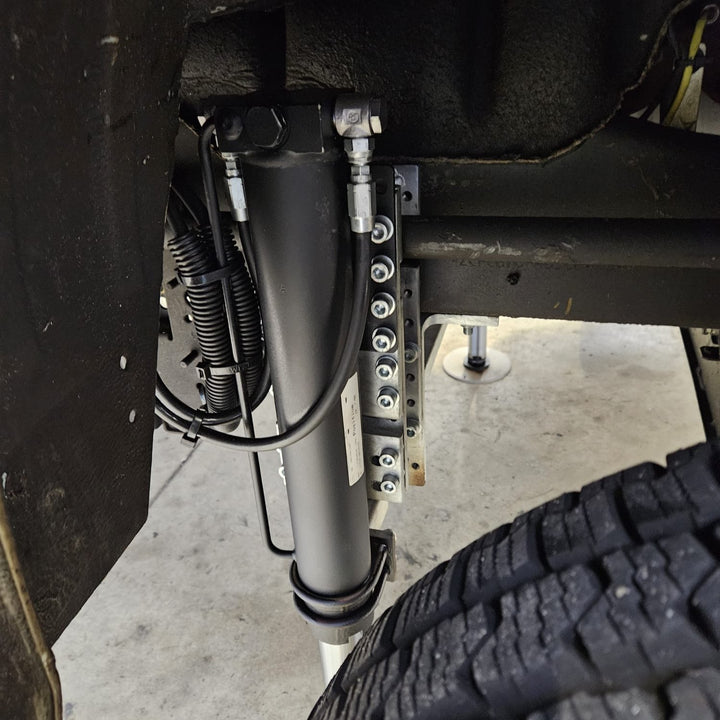

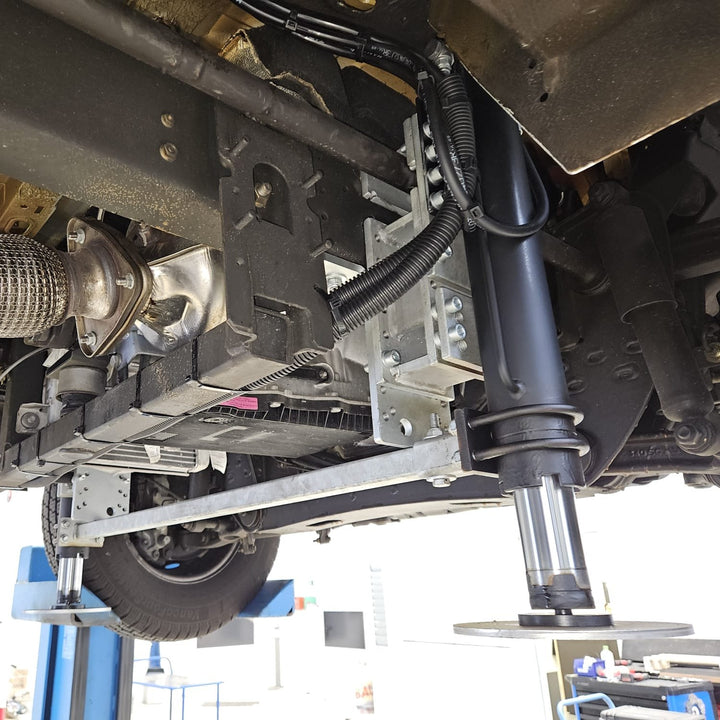

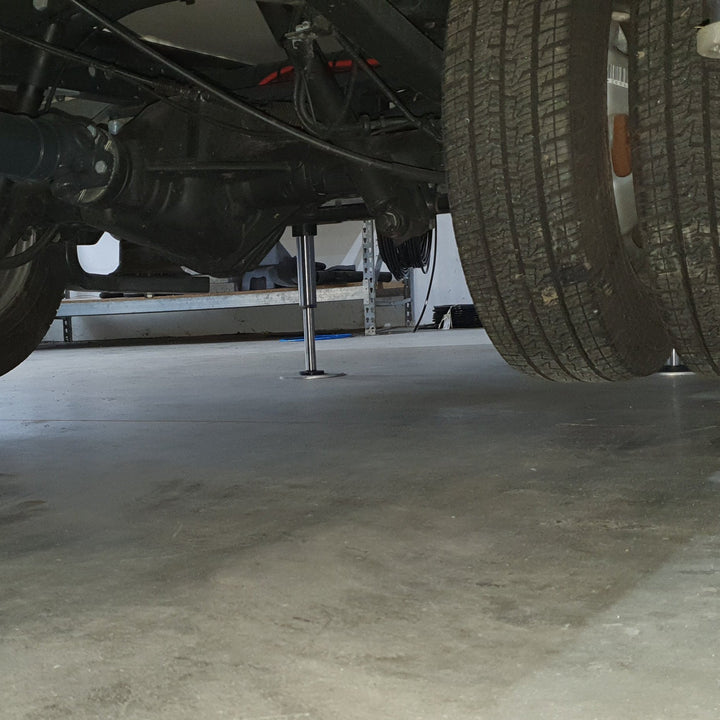

4 telescopic cylinders with 380 mm stroke
2 tons load capacity per outrigger
Double unlockable check valve per cylinder to prevent uncontrolled movement of the cylinders in any situation
1.4M span between L & R cylinders for greater stability (wobble-free standing)
Chassis specific galvanized mounting brackets

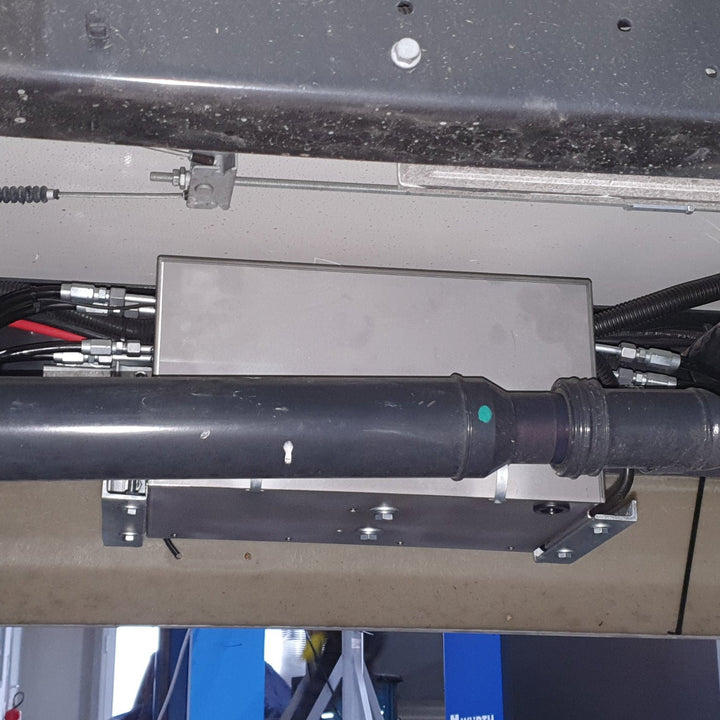

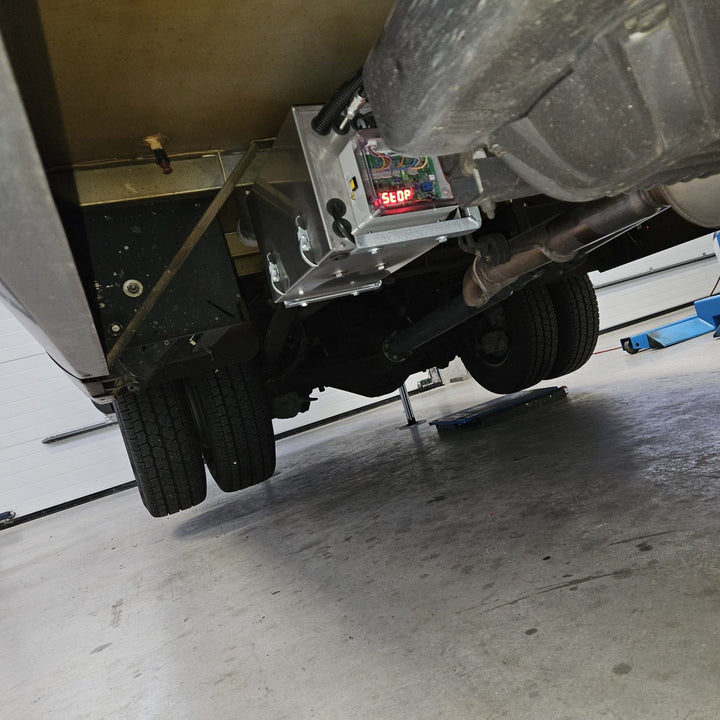

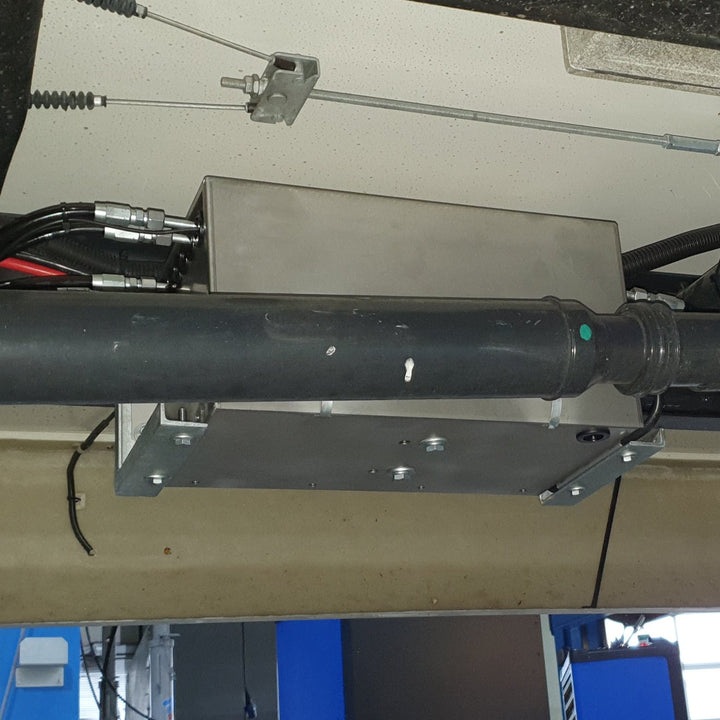

Stainless steel pump-housing
8 hydraulic hoses with high-grade screw connectors for easy installation
Compact connection cable for the main power supply
Mechanical and electronic shift lock
Tank for 4 litres of hydraulic oil
12-volt DC generator set with special valve assembly, gear pump and thermal switch on the drive motor

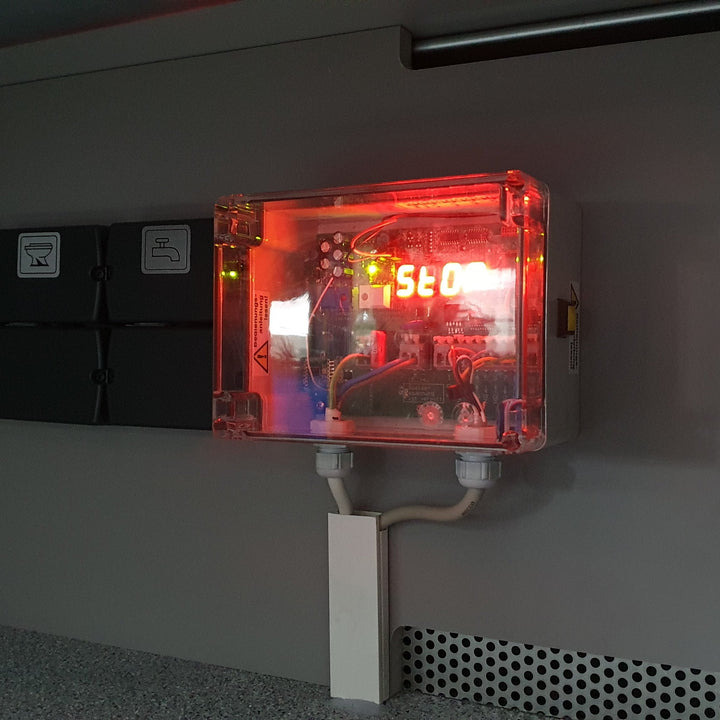

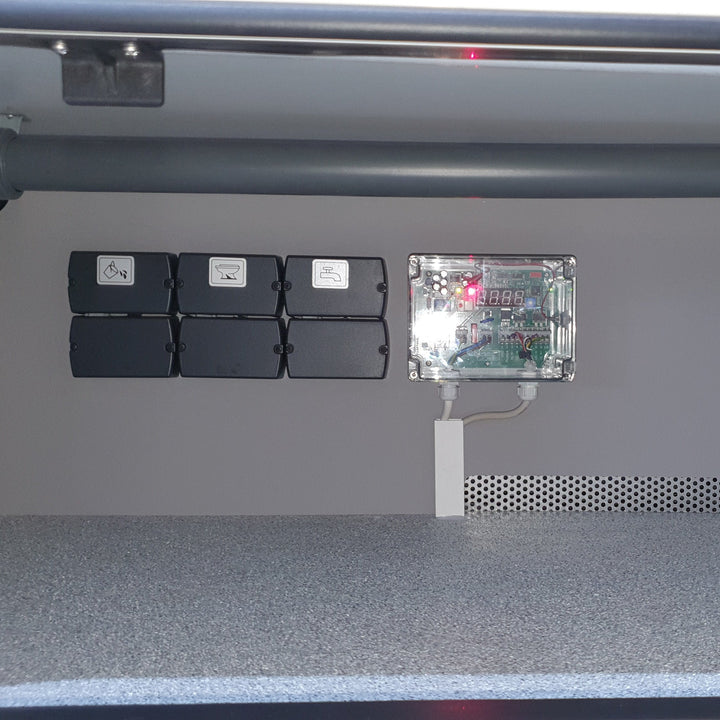

Self-developed electronics with automatic SHR auto-level function, radio remote control and smartphone app
Pricing includes delivery & VAT, and full installation by an approved installing agent.

*SAFETY: The patented double-release non-return valve system enables use of the hydraulic system to safely change a wheel/tyre or apply snow chains. Performing work under the vehicle should only be done with the use of axle stands and appropriate protective measure.

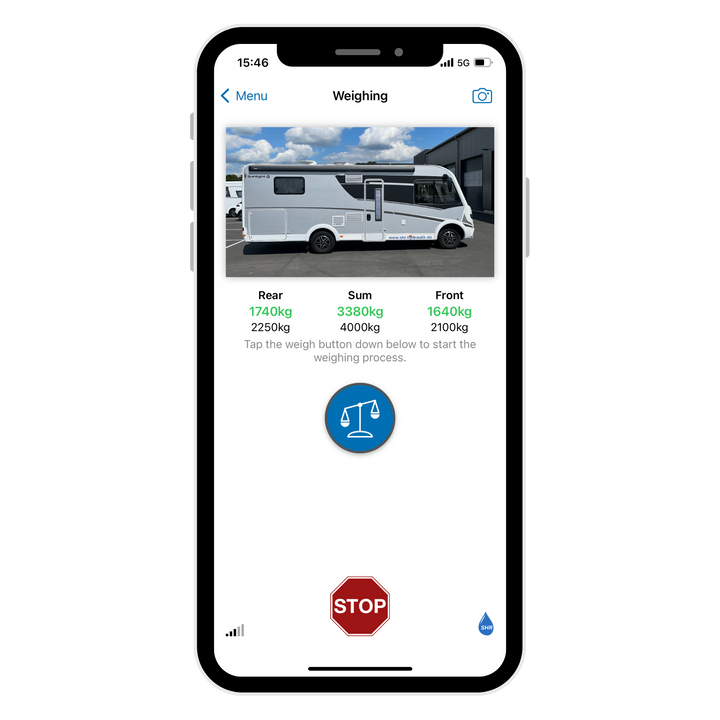

Weighing Function
Upgrade your SHR Hydraulik Self Levelling System with the Advanced Weight Function, delivering precise weight measurements with ±1.5% accuracy. Enhance efficiency, prevent overloading, and ensure safety with real-time load insights.

We believe in our products and think you should be able to enjoy worry-free touring, and that's why we offer a 2-year warranty as standard.

We have a nationwide network of VB-Dealer that can offer servicing and assistance for your SHR Hydraulik product. Find a local VB-Dealer here.

[{"id":42699432788061,"title":"Without weighing module","option1":"Without weighing module","option2":null,"option3":null,"sku":"VBU-SHR-IV","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SHR Hydraulik Self-Levelling System for Iveco Daily chassis from 2006 to current - Without weighing module","public_title":"Without weighing module","options":["Without weighing module"],"price":834000,"weight":85000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42699432820829,"title":"With weighing module","option1":"With weighing module","option2":null,"option3":null,"sku":"VBU-SHR-IV, VBU-SHR-WM","requires_shipping":true,"taxable":true,"featured_image":{"id":35959160471645,"product_id":7717962481757,"position":4,"created_at":"2024-09-13T10:58:09+01:00","updated_at":"2024-12-18T18:01:41+00:00","alt":null,"width":2048,"height":2048,"src":"\/\/vbairsuspension.co.uk\/cdn\/shop\/files\/Weighing_function_on_smartphone_background.png?v=1734544901","variant_ids":[42699432820829]},"available":true,"name":"SHR Hydraulik Self-Levelling System for Iveco Daily chassis from 2006 to current - With weighing module","public_title":"With weighing module","options":["With weighing module"],"price":874500,"weight":85000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":28117852520541,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/vbairsuspension.co.uk\/cdn\/shop\/files\/Weighing_function_on_smartphone_background.png?v=1734544901"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Secure quick and precise levelling

SHR Hydraulic levelling systems offer effortless, automatic motorhome stabilisation on uneven ground which enhances your comfort, safety and convenience when you are pitched up.

App Remote Control

for convenience

Level in Under 60 Seconds

for quicker levelling

Stainless steel footplates

for durability

Weighing Function

accurate within 1.5%

Safe Tyre Change

with patented safety cylinder lock
