VBU-SHR-VS30-KW

Regular price£7,495.00
/
Tax included.
*PRICE IS SUBJECT TO VEHICLE APPRAISAL*
Weighing module
  • Easy, automatic levelling in under 60 seconds
  • Convenient control via remote or smart phone app
  • Stainless steel footplates with 18 degree articulation
NOTE: This system must be ordered through a VB-Dealer where it can be installed by trained & accredited technicians.

This system must be ordered through a VB-Dealer where it can be installed by trained & accredited technicians.

Check availability with your local VB-Dealer here.

SHR-Hydraulik Automatic hydraulic self-levelling system with multi-function smartphone App control.

The SHR-Hydraulik levelling system presents an innovative and premium quality compact levelling system for motorhomes and campervans.

Practical operation is via remote control or the SHR smartphone app for quick and convenient levelling in under 60 seconds, with an optional weighing function for complete peace of mind.

 Benefits

  • Safe levelling of the vehicle in under 60 seconds
  • Convenient control via a radio remote control or smartphone app
  • Stainless steel footplates which articulate up to 18 degrees on uneven ground
  • (Optional) Weighing function with less than 1.5% maximum deviation accuracy from the permissible total weight.
  • Mechanical and electronic shift lock and a double-release check valve on each cylinder:  Permits the change of tires or application of snow chains*
  • Utilization of existing chassis fixing points for installation
  • No loss of valuable storage space in the vehicle
  • High quality installation by experienced, trained technicians
  • Standard 24 month warranty

    Specifications

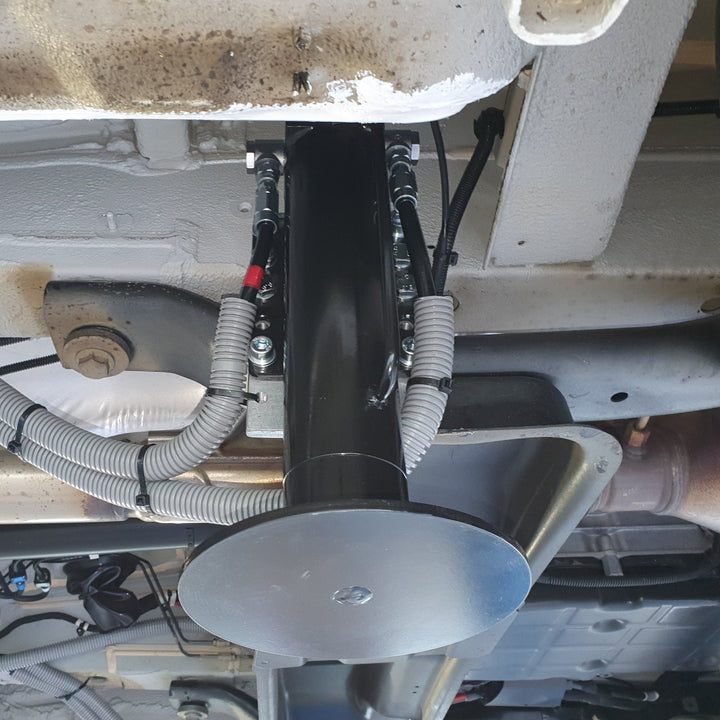

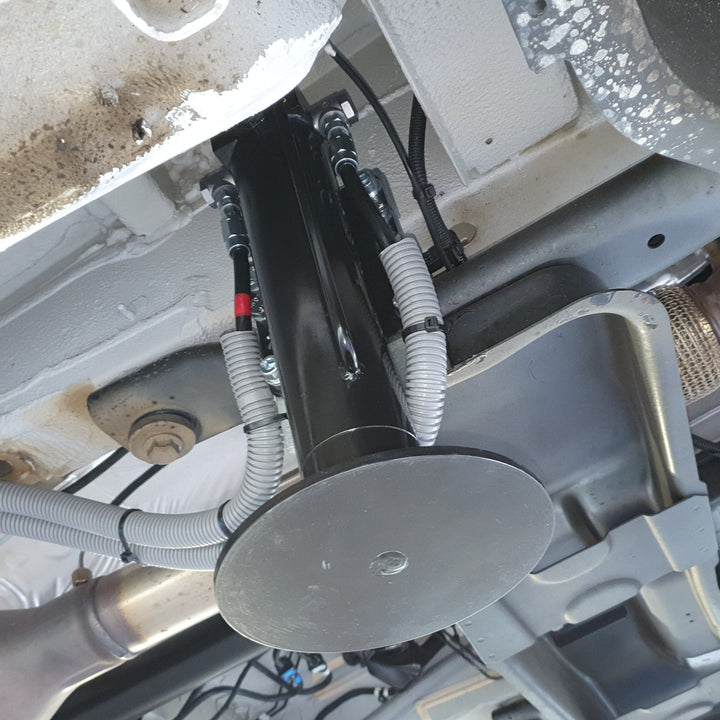

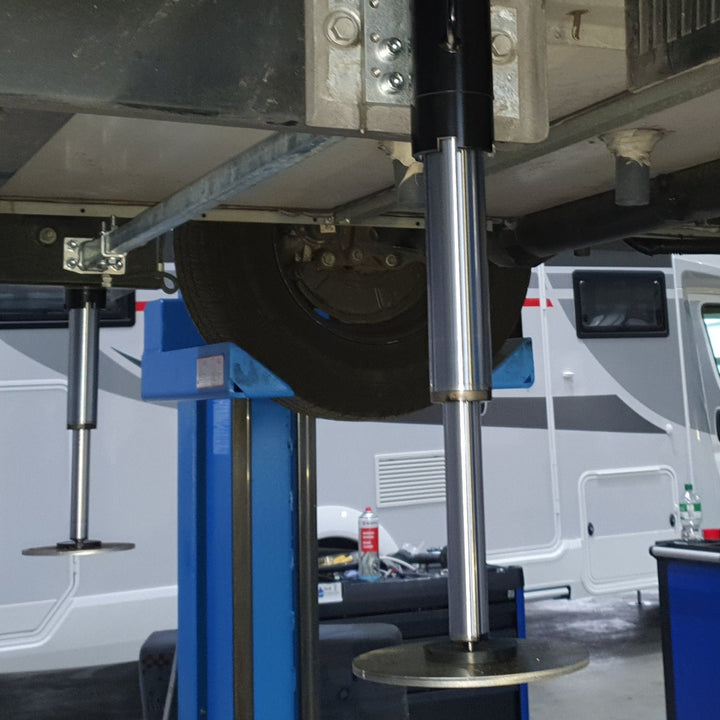

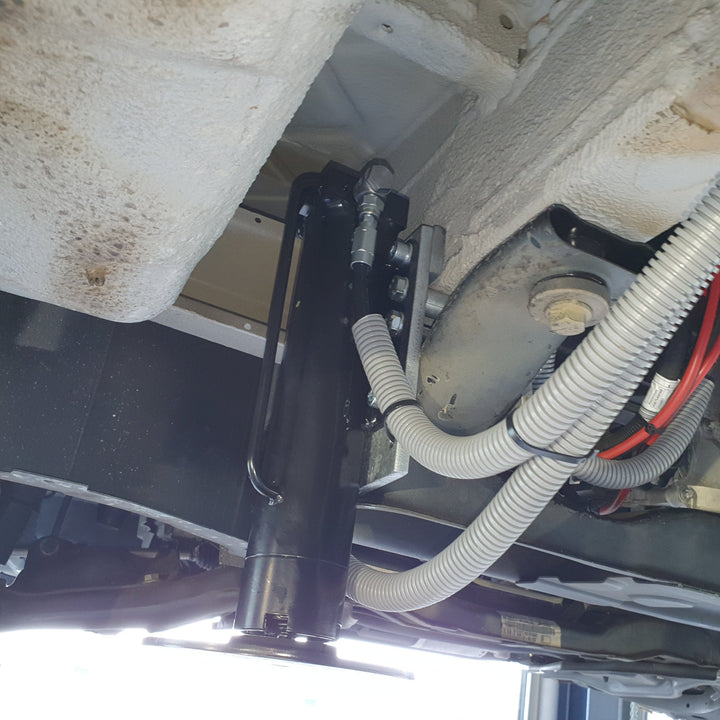

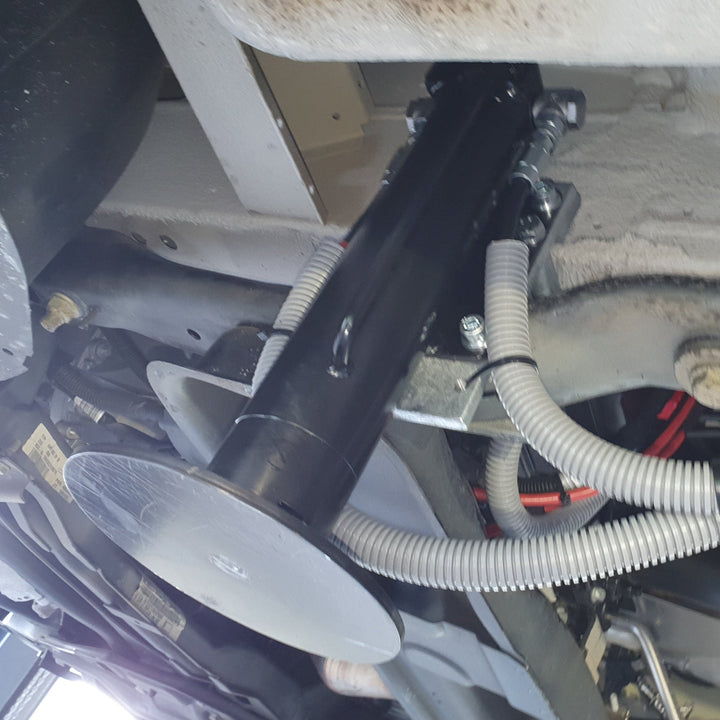

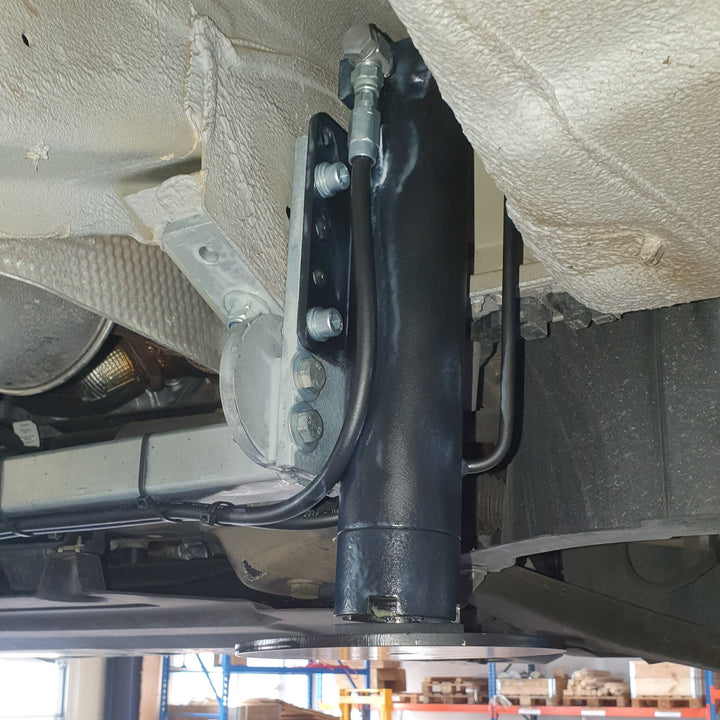

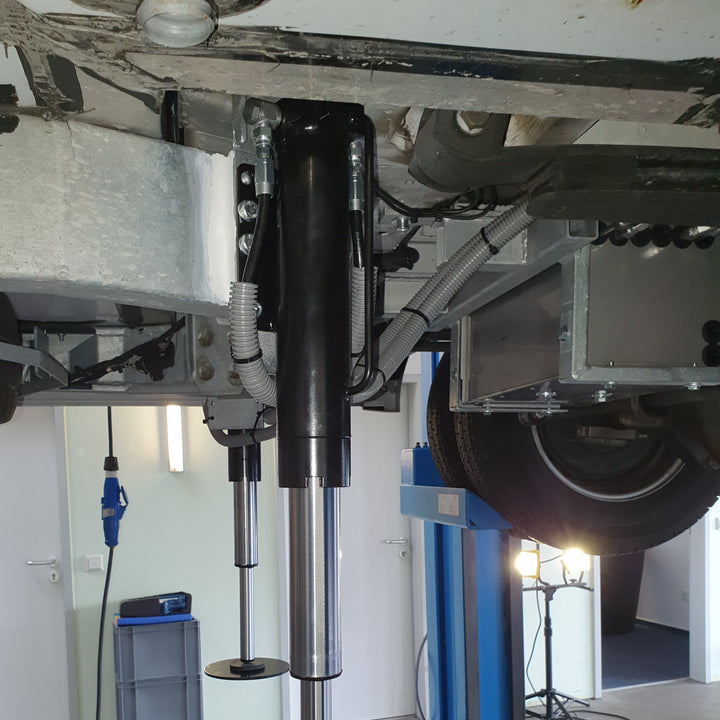

    • 4 telescopic cylinders with 380 mm stroke
    • 2 tons load capacity per outrigger
    • Double unlockable check valve per cylinder to prevent uncontrolled movement of the cylinders in any situation
    • 1.4M span between L & R cylinders for greater stability (wobble-free standing)
    • Chassis specific galvanized mounting brackets

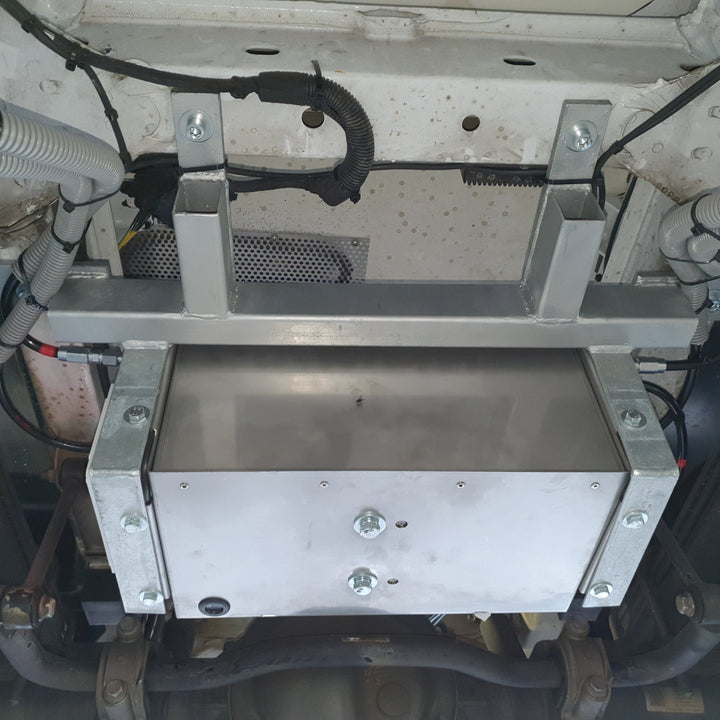

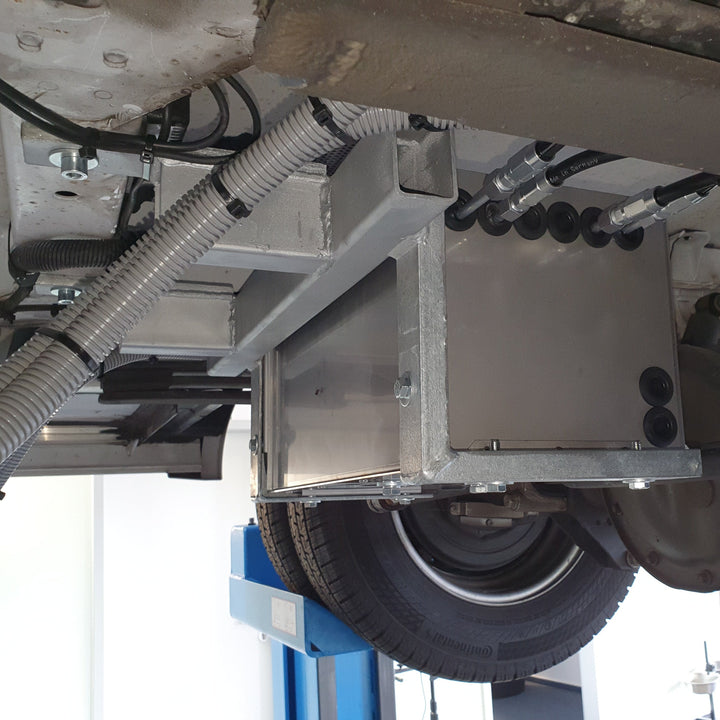

    • Stainless steel pump-housing
    • 8 hydraulic hoses with high-grade screw connectors for easy installation
    • Compact connection cable for the main power supply

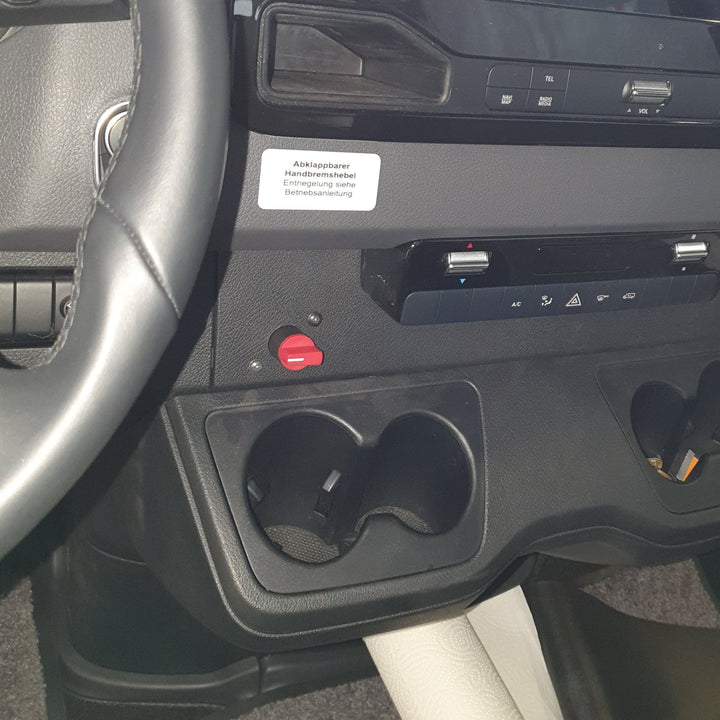

    • Mechanical and electronic shift lock
    • Tank for 4 litres of hydraulic oil

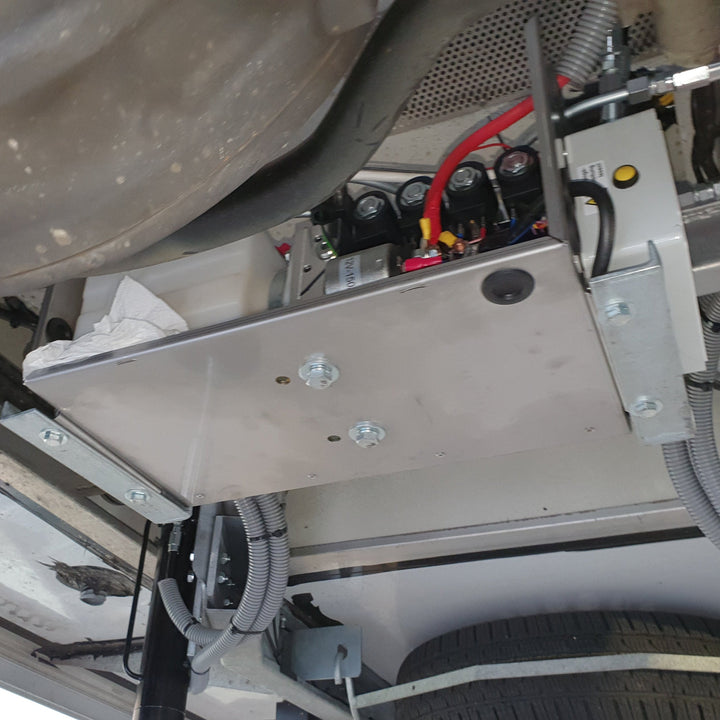

    • 12-volt DC generator set with special valve assembly, gear pump and thermal switch on the drive motor

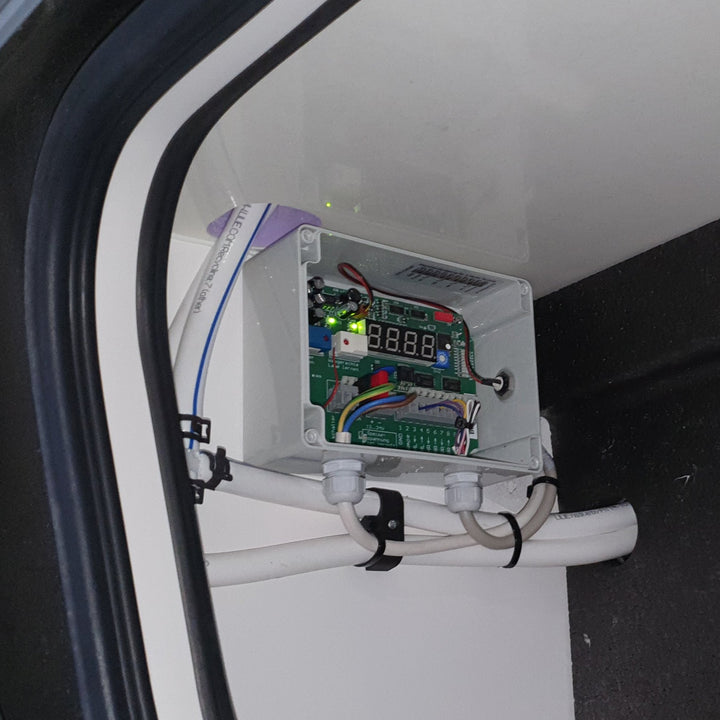

    • Self-developed electronics with automatic SHR auto-level function, radio remote control and smartphone app
    • Pricing includes delivery & VAT, and full installation by an approved installing agent.

    *SAFETY: The patented double-release non-return valve system enables use of the hydraulic system to safely change a wheel/tyre or apply snow chains. Performing work under the vehicle should only be done with the use of axle stands and appropriate protective measure.

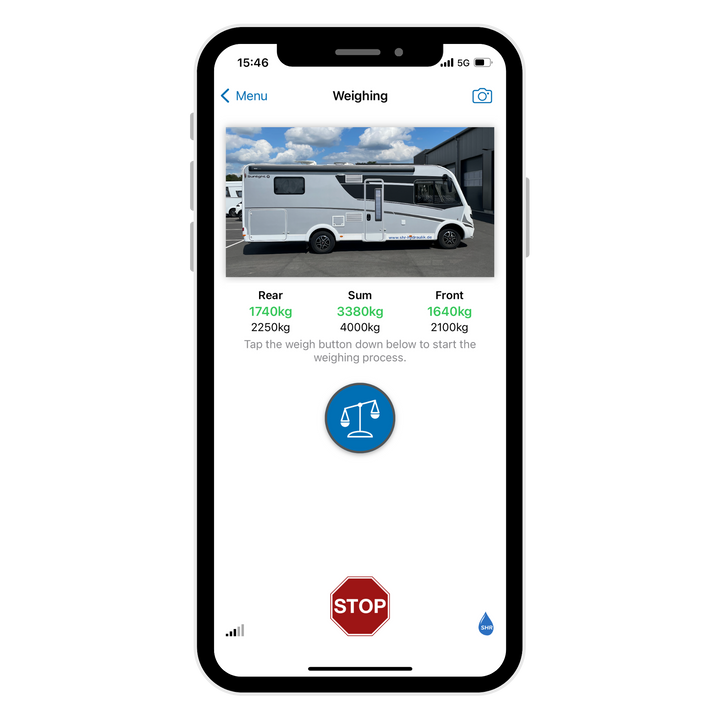

    Weighing Function
    Upgrade your SHR Hydraulik Self Levelling System with the Advanced Weight Function, delivering precise weight measurements with ±1.5% accuracy. Enhance efficiency, prevent overloading, and ensure safety with real-time load insights.

    We believe in our products and think you should be able to enjoy worry-free touring, and that's why we offer a 2-year warranty as standard.

    We have a nationwide network of VB-Dealer that can offer servicing and assistance for your SHR Hydraulik product. Find a local VB-Dealer here.

    This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

    Secure quick and precise levelling

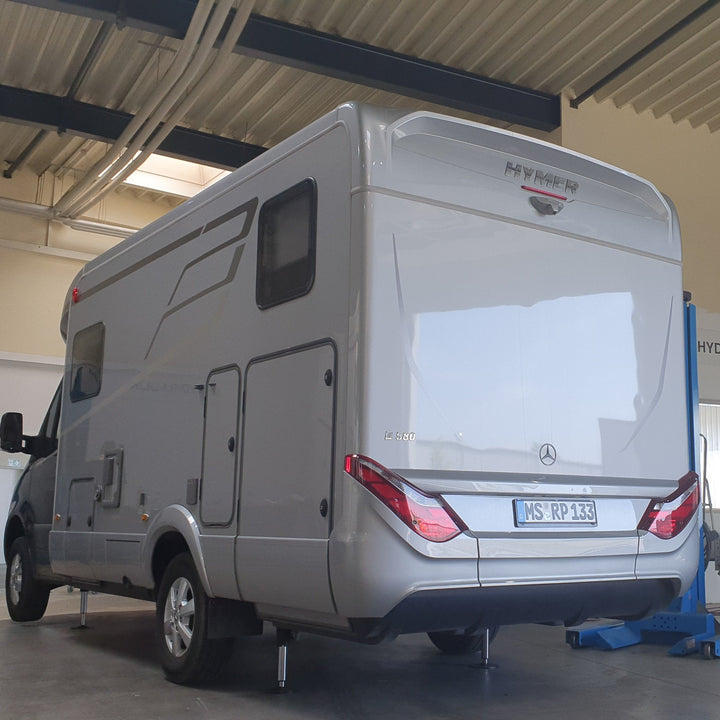

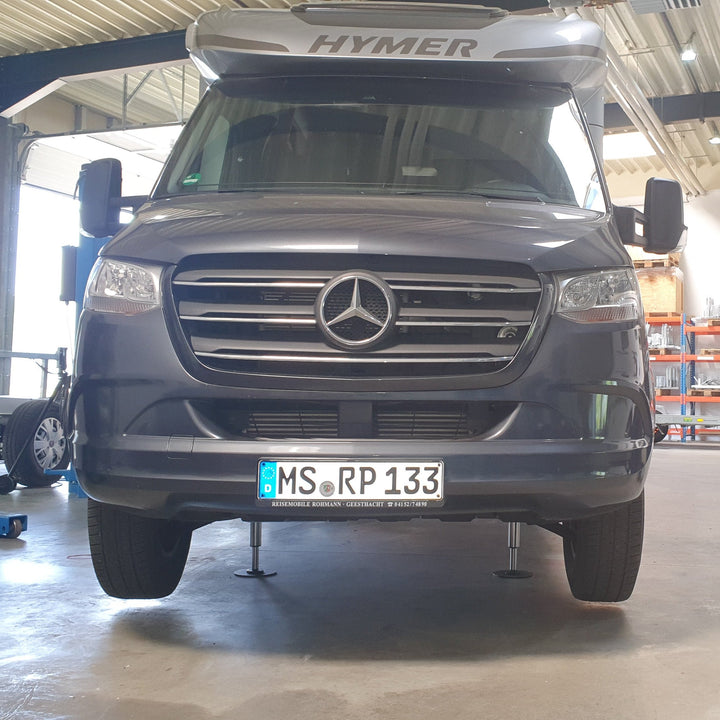

    SHR Hydraulic levelling systems offer effortless, automatic motorhome stabilisation on uneven ground which enhances your comfort, safety and convenience when you are pitched up.

    App Remote Control

    for convenience

    Level in Under 60 Seconds

    for quicker levelling

    Stainless steel footplates

    for durability

    Weighing Function

    accurate within 1.5%

    Safe Tyre Change

    with patented safety cylinder lock
