VB-FullAir 4C for Auto-Trail Grande Frontier range MY2023-current

This system must be ordered through a VB-Dealer where it can be installed by VB trained & accredited technicians.

Check availability with your local VB-Dealer here.

VB-FullAir: fully automatic air suspension with multi-function control

VB-FullAir is an automatic, adjustable air suspension solution adding comfort and additional functionality to campervans and motorhomes, replacing the original leaf/coil spring suspension.

This system package includes:

1. Air springs
2. AL-KO chassis mounting brackets
3. shock absorbers
4. Electronic control unit (VB-ASCU)
5. Front struts with integrated air springs
6. Height sensors

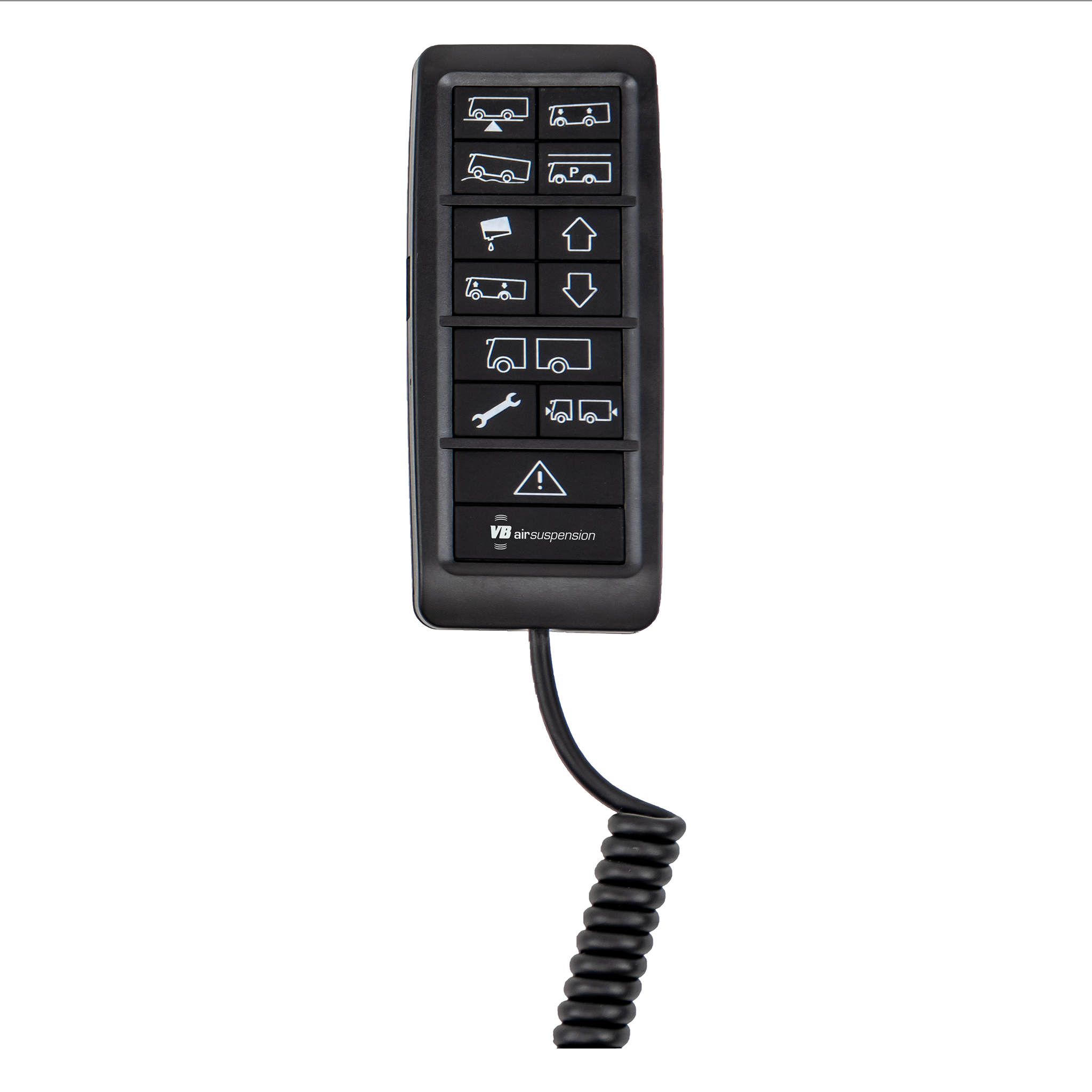

7. Multi-function remote control
8. User manual
9. Installation by a VB-Airsuspension accredited installing agent

What are the benefits?

The air suspension system filters out unevenness in the road surface, improving comfort with a smoother and quieter ride.

While driving, the vehicle will constantly remain at the optimised ride height programmed by the VB-Airsuspension approved installer, ensuring improved driveability and dynamic stability, which in turn increases safety.

Features

The VB-FullAir Motorhome software package incorporates the following features accessible through the multi-function remote control*

1. Ferry mode lowers the front while raises the rear of the vehicle to maximise departure angle
2. Off-road increases ground clearance across the entire vehicle by circa +30mm
3. Parking lowers the vehicle to the lowest level for improved access and loading
4. Water discharge tilts the vehicle to aid drainage of water tanks
5. Load/Unload raises the front while lowering the rear for optimum loading level at the rear

Optional Equipment (included in stated price)

VB-AutoLevel

This module allows the vehicle to be positioned horizontally, even when the vehicle is standing on uneven ground. At the push of a button, the vehicle can be levelled quickly and smoothly. Unevenness of more than 10 cm can be corrected (depending on the type of vehicle). Only suitable for VB-FullAir 4C systems.

Emergency valve kit

The VB-FullAir system can be pressurised by means of filling valves in the event of an electronic failure such as a flat battery. The vehicle can be brought up to driving height again by means of an external air supply so that the journey can be continued.

*Certain features only operable within speed limits.

VB-AutoLevel
This module allows the vehicle to be positioned horizontally, even when the vehicle is standing on uneven ground. At the push of a button, the vehicle can be levelled quickly and smoothly. Unevenness of more than 10 cm can be corrected (depending on the type of vehicle). Only suitable for VB-FullAir 4C systems

Emergency valve kit
The VB-FullAir system can be pressurised by means of filling valves in the event of a possible electronic failure or a defect in the compressor. The vehicle can be brought up to driving height again by means of an external air supply so that the journey can be continued.

We believe in our products and think you should be able to enjoy worry-free touring, and that's why we offer a 2-year warranty as standard.

*Price stated includes optional 3rd year warranty.

We have a nationwide network of VB-Dealer that can offer servicing and assistance for your VB product. Find a local VB-Dealer here.
